Shure ANI4OUT | Dsp, Routing & Mixing

• Single Ethernet port carries Dante audio, power (PoE – class 0)

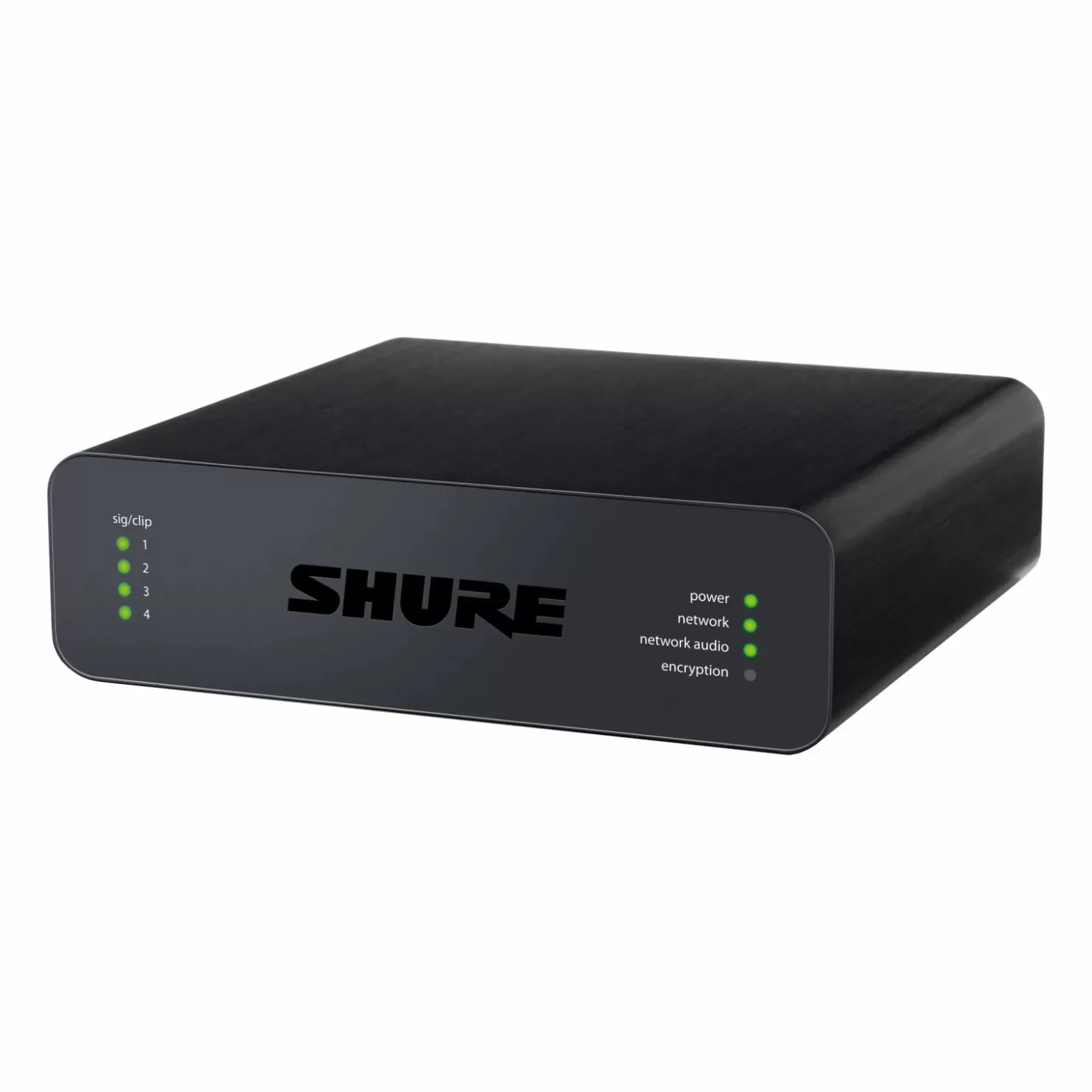

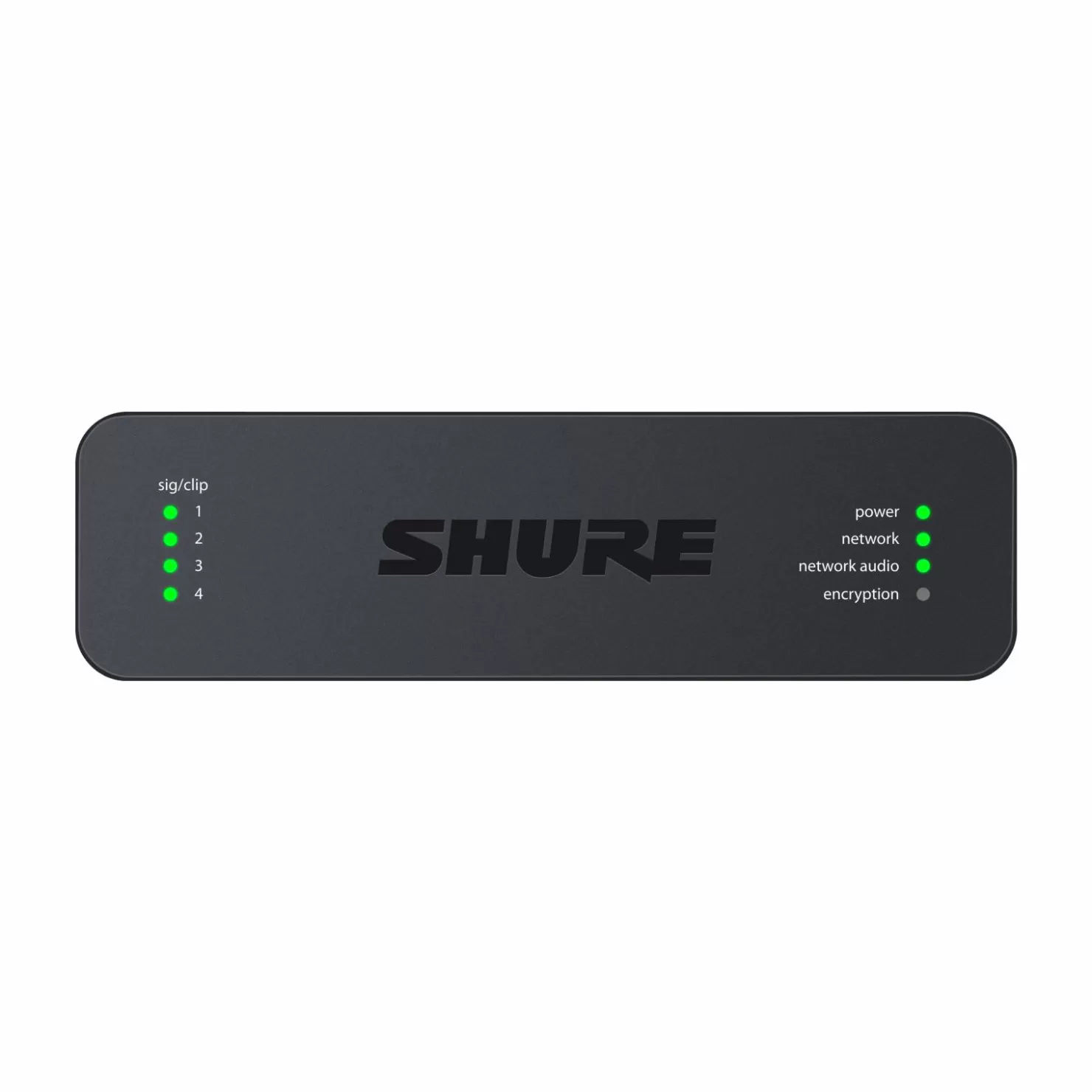

• LEDs indicate device status and audio signal
• Control strings for third-party preset controllers including Crestron® and AMX®
• 4 Band C/S PEQ on every channel
• Provides channel summing to combine Dante™ signals from the network and send them over a single analog output
• Browser-based software control for all device parameters, per output channel:
  • Mute control
  • Digital gain
  • Polarity control
• 1/3 Rack unit wide

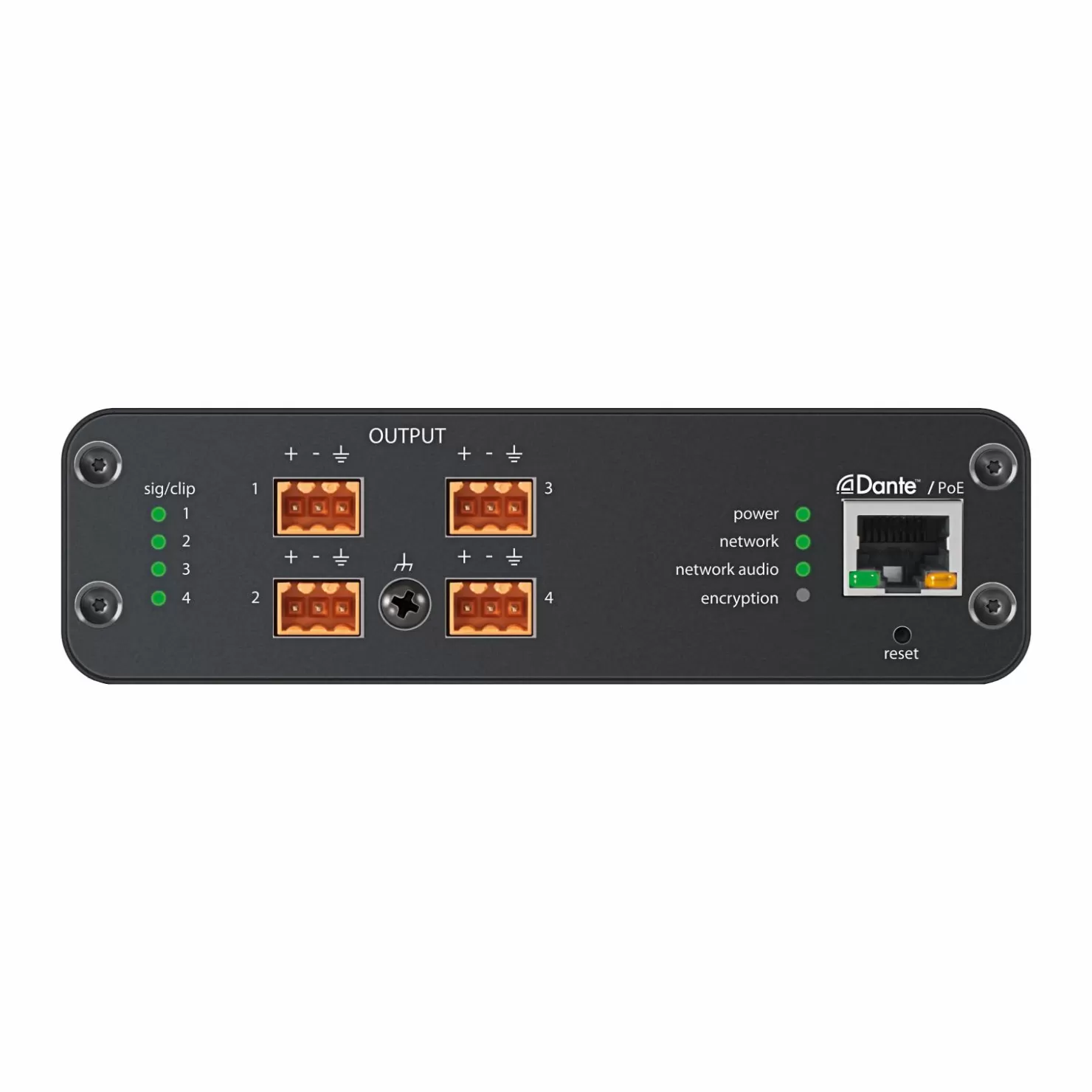

• Chassis ground screw (BLOCK version only) provides common chassis ground for multiple inputs

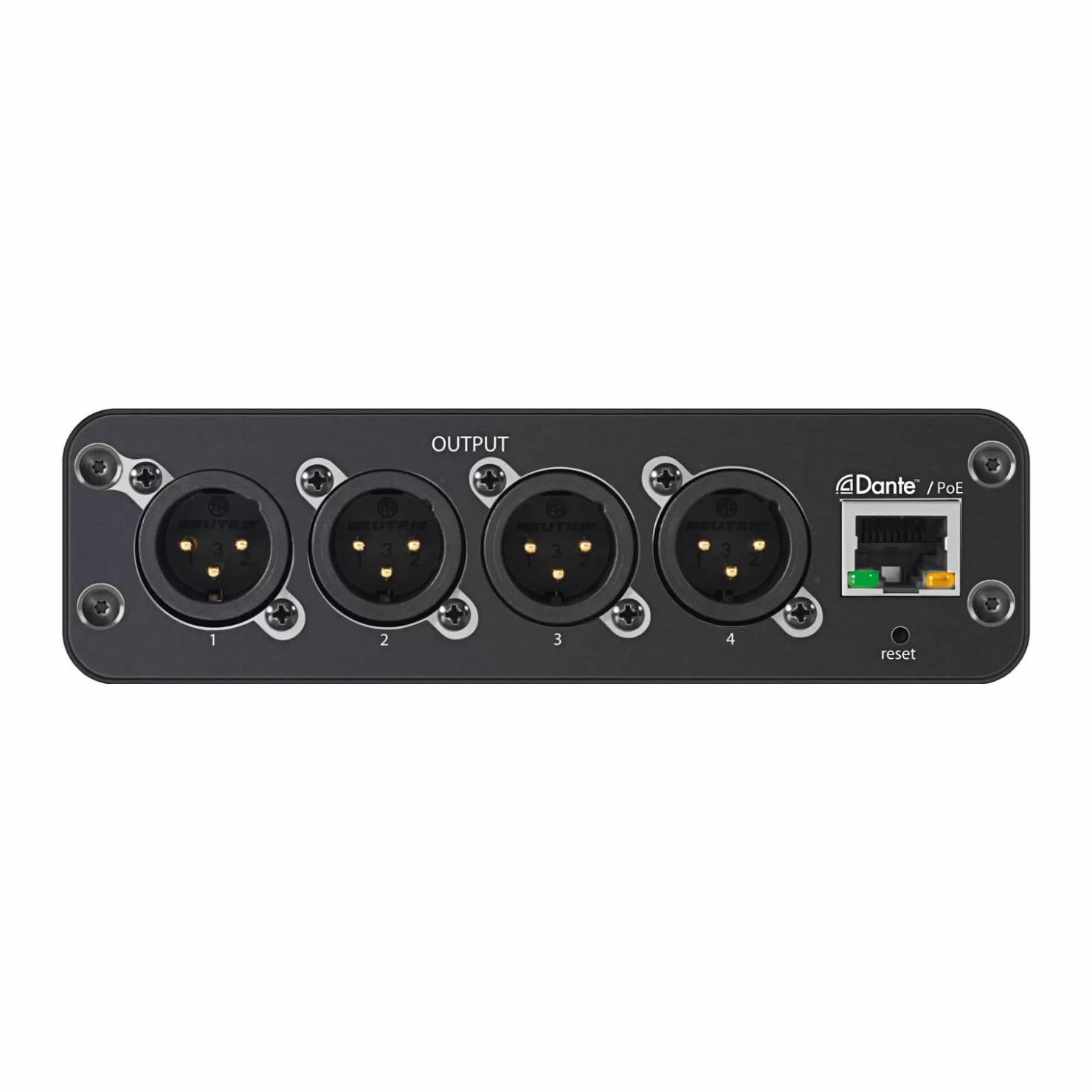

• Available in block connector and standard XLR variations

Converts Dante™ digital audio signal to four discrete line / mic analog signals.
